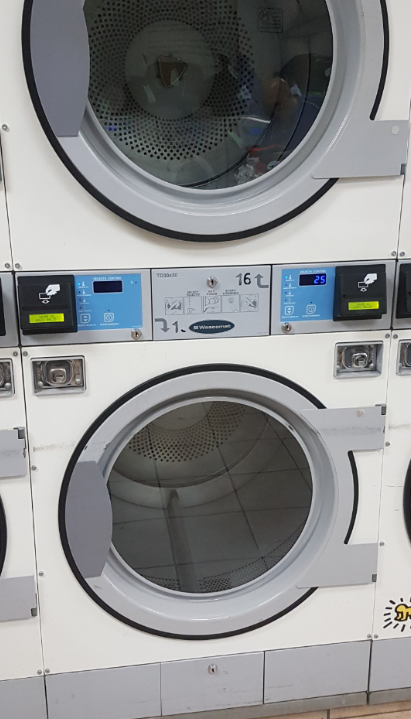

This installation covers Wascomat TD30x30/TD45x45 dryers, and Electrolux dryers that look exactly the same.

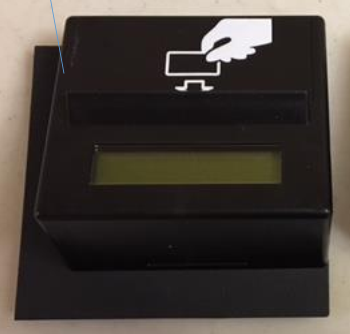

• Reader

• Cable harness (4-wire)
• Power supply adapter

1. Before proceeding, you should assign numbers to each of the machines in the laundry room/building. It is highly recommended that you place number labels on each washer and dryer machine.


2. Set the machine type and number using the DIP switch on the reader's circuit board:
   See DIP switch settings page to understand how to configure DIP switch positions to set the machine type (washer or dryer) and number.

3. Turn machine power OFF!


4. Remove the coin drop if present

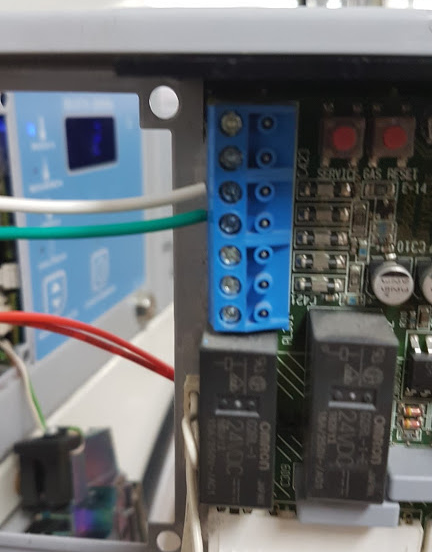

5. Attached the White and Green wires to the screw terminals as shown below (3rd and 4th from the top)


6. Connect power adapter. For high voltage AC side, unless you have an outlet directly behind the machine, you will need to cut-off the AC prong and expose the Hot and Neutral wires, which you will need to connect to the Hot and Neutral inside the machine
