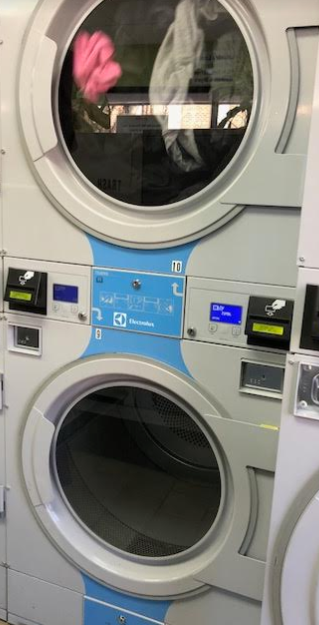

This installation covers Electrolux Compass Pro Single and Stack Dryers.

• Reader

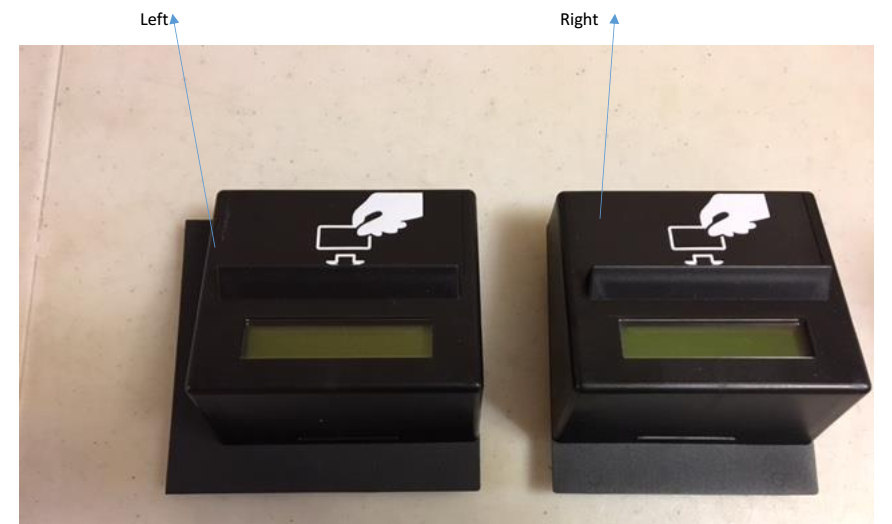

  For stack dryers, the readers have back-plates that differ between the left and right versions:

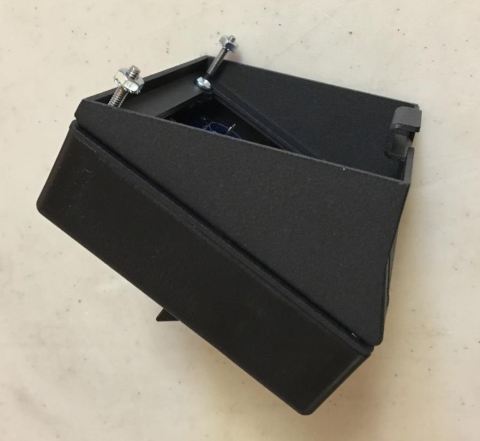

  For single dryers, the readers use a special mounting bracket:



• Cable harness (3-wire)

1. Before proceeding, you should assign numbers to each of the machines in the laundry room/building. It is highly recommended that you place number labels on each washer and dryer machine.


2. Set the machine type and number using the DIP switch on the MCU circuit board:
   See DIP switch settings page to understand how to configure DIP switch positions to set the machine type (washer or dryer) and number. Note that MCUs may already come from Mitech configured with the appropriate DIP switch settings. Proceed with installing the MCU on the corresponding machine type and number.


3. Turn machine power OFF!


4. Remove the coin drop if present


5. Connect the 3-wire harness to the green coin board inside the machine. The wire harness should have the wires labeled as GND(COM), 9V, and Coin. There are two variants of coin board: with screw terminals and without screw terminals.


Boards without screw terminals

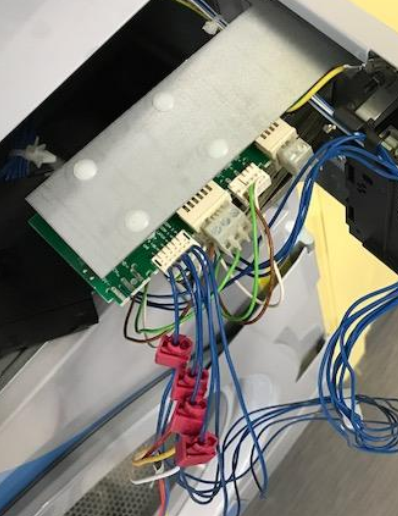

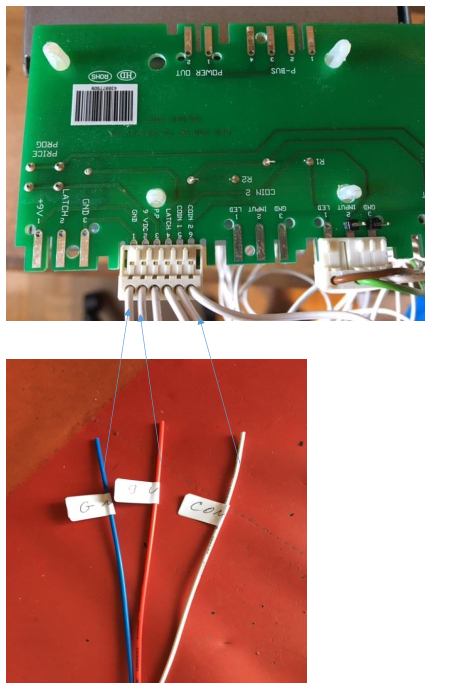

You will have to splice the three wires to the existing cable harness as shown:
.
The result should look as below

Boards with screw terminals

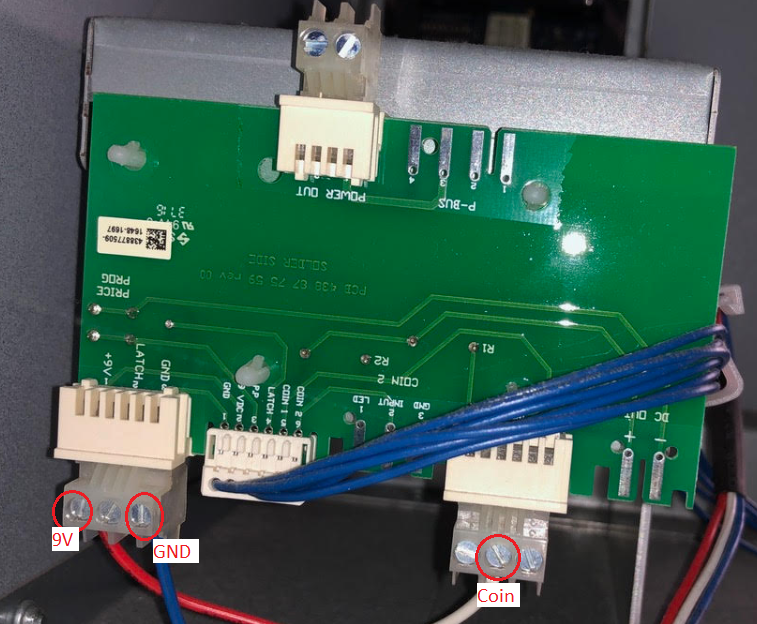

Simply connect to the screw terminals as follows

6. Proceed to secure the reader to the machine using the nuts

This is set on the LaundroPortal (but the dry time is set on the machine itself)

NOTE: Ensure the machine is not in Free Mode
