This installation covers Speed-Queen/Huebsch washers with Netmaster controls

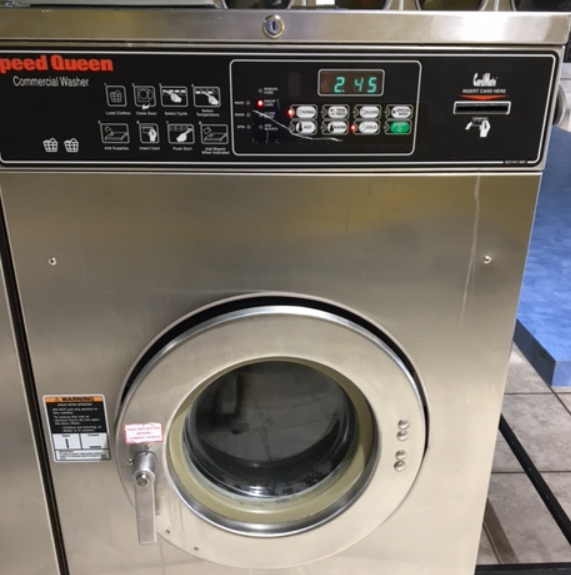

(Shown above is a card-ready version with an ESD reader - just for reference)

• Reader
• Cable harness

1. Before proceeding, you should assign numbers to each of the machines in the laundry room/building. It is highly recommended that you place number labels on each washer and dryer machine.


2. Set the machine type and number using the DIP switch on the back of the card reader:
   See DIP switch settings page to understand how to configure DIP switch positions to set the machine type (washer or dryer) and number. Note that MCUs may already come from Mitech configured with the appropriate DIP switch settings. Proceed with installing the MCU on the corresponding machine type and number.


3. Turn machine power OFF!


4. Remove coin drop

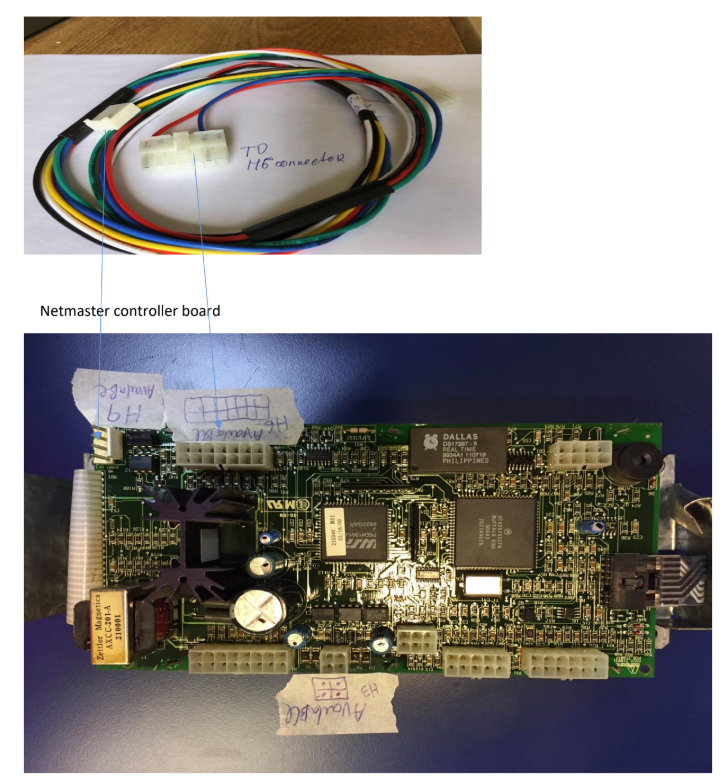

5. Connect the two connectors from the cable harness to header H6 and H9 as shown below:


6. Connect the reader-side cable to the reader and secure the reader to the machine

These are set on the LaundroPortal
