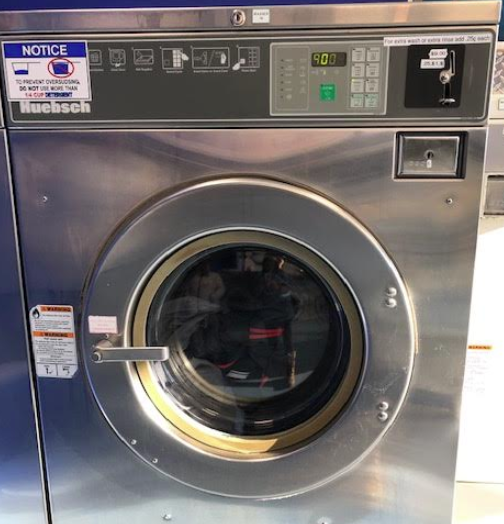

This installation covers Speed-Queen/Huebsch washers with B-micro controls.

• Reader
• Cable harness
• Power supply adapter for the reader

1. Before proceeding, you should assign numbers to each of the machines in the laundry room/building. It is highly recommended that you place number labels on each washer and dryer machine.


   1. Set the machine type and number using the DIP switch on the back of the card reader:

      See DIP switch settings page for more info.
2. Turn machine power OFF!


3. Remove coin drop

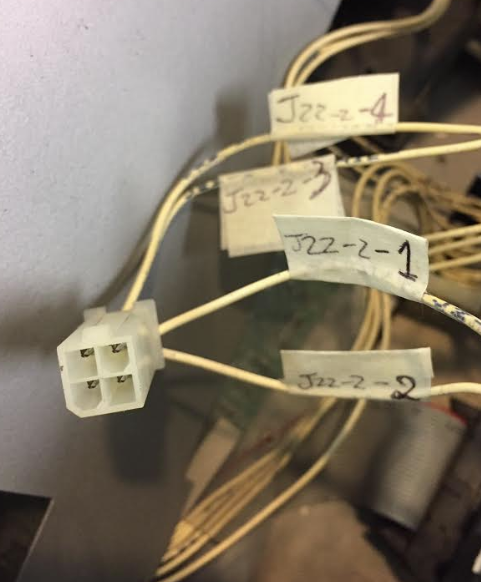

4. Locate the square Molex connector and connect it to the mating connector on the provided cable harness

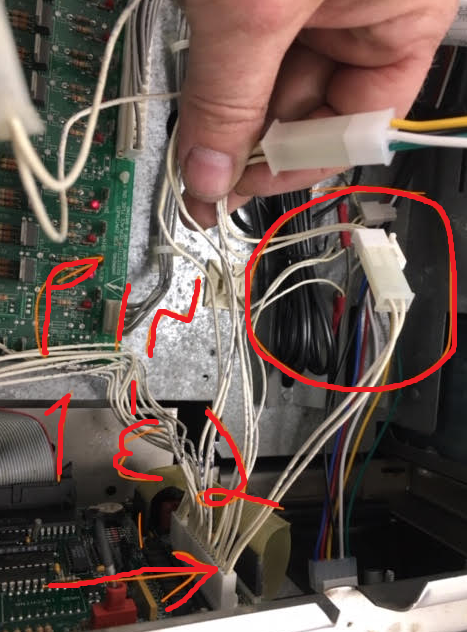

5. IMPORTANT: Connecting to pins 1 and 2 on the big white connector (J22) on the machine's board is a 2-pin Molex connector. Ensure that this 2-pin connector is plugged into the mating 2-pin connector coming off of the square Molex connector from the previous step (you will need to unplug the mating connector if its presently connected elsewhere)

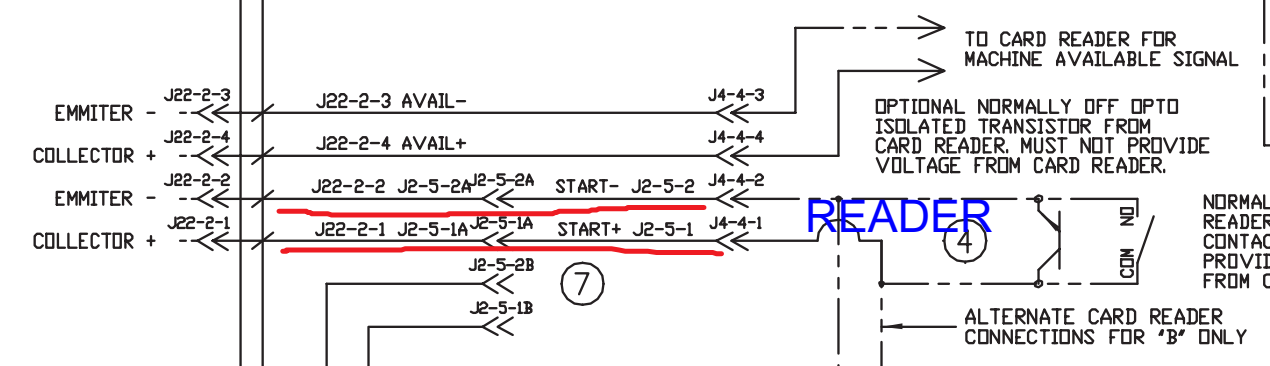

   In other words, the start relay on the reader-side ultimately needs to connect to J22-2-1 and J22-2-2:

6. Splice the AC-side of the 12V power adapter to the power terminal block (110V or 220Vac).
7. Connect DC jack from the 12V supply to main reader harness
8. Secure the reader to the machine and power up the machine
9. Go into the machine's configuration menu and set it to CARD MODE.

These are set on the LaundroPortal
