This installation covers Speed-Queen Netmaster stack dryers.

• Reader
• Cable harness

1. Before proceeding, you should assign numbers to each of the machines in the laundry room/building. It is highly recommended that you place number labels on each washer and dryer machine.


2. Set the machine type and number using the DIP switch on the MCU circuit board:
   See DIP switch settings page to understand how to configure DIP switch positions to set the machine type (washer or dryer) and number. Note that MCUs may already come from Mitech configured with the appropriate DIP switch settings. Proceed with installing the MCU on the corresponding machine type and number.


3. Turn machine power OFF!


4. Open the service hatch, pull-out the control board and coin drop assembly, detach the coin drop connector and and remove the coin drop

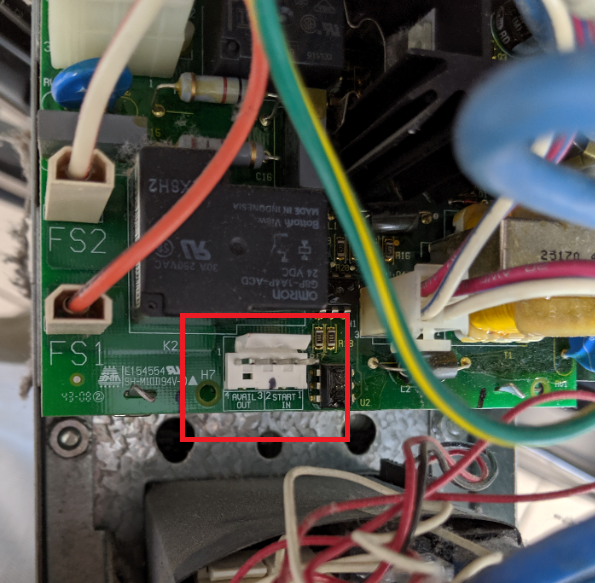

5. Connect the 4-wire connector to header H7 on the control board:

6. Connect the 2-wire connector the 24Vac power supply connector coming off the transformer on the machine
7. Mount the reader

These are set on the LaundroPortal.
