There are many variants of ADC dryers models. The connections to all of them are similar.

• Reader
• Cable harness
• Power supply (for Phase 5 controls only)

1. Before proceeding, you should assign numbers to each of the machines in the laundry room/building. It is highly recommended that you place labels on each machine.


2. Set the machine type and number using the DIP switch on the reader circuit board:
   See DIP switch settings page to understand how to configure DIP switch positions to set the machine type (washer or dryer) and number.
3. Turn machine power OFF!


4. Remove the coin-drop

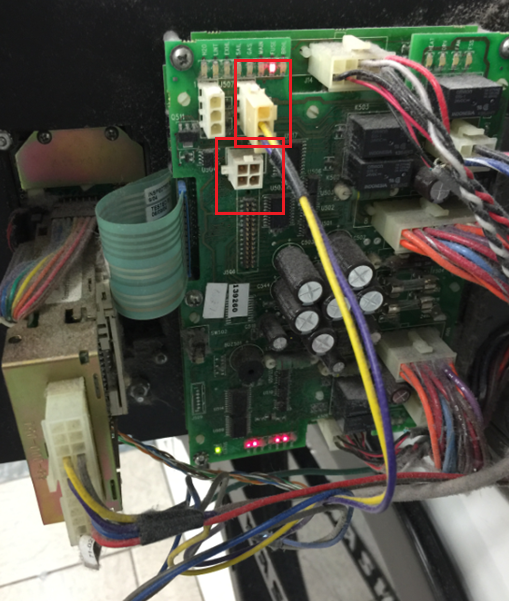

5. If the dryer has a Phase 7 control board (with the white headers) shown below, plug the two mating connectors of the provided cable harness into the connectors shown in red (one is power, one is coin signal) \\

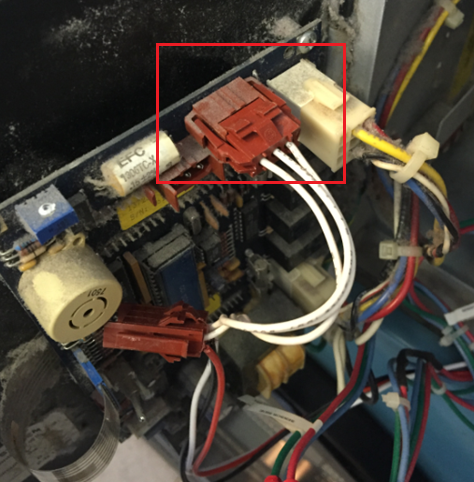

6. If the dryer has a Phase 5 control board (with the red header shown below), just plug the mating connector into it and connect the provided power supply adapter accordingly


7. Mount the reader. You may need to drill a couple of holes depending on the machine

Set on the Portal. Note the reader just sends a pulse and charges the vend price. The amount of time added is set on the machine.
